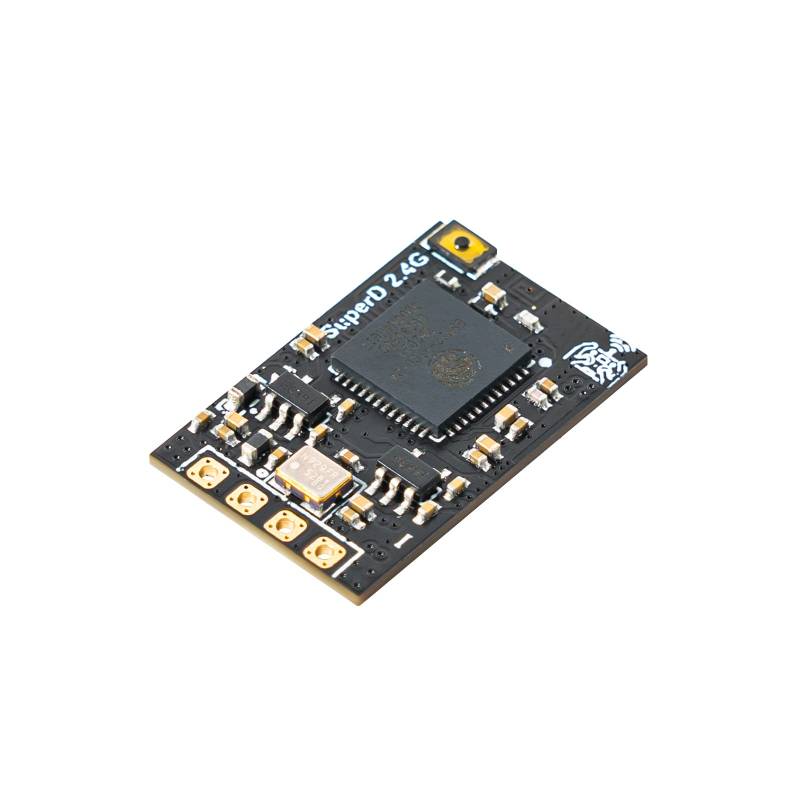

BETAFPV SuperD ELRS Diversity Receiver with Dual Receiver Chains 2 Antennas TXCO Tech Support CRSF Protocol for FPV Drone Fixed-Wing Aircraft Long Range Flying Aerial Photography FPV Freestyle Tricks

Produktbeschreibung

【TXCO Tech】SuperD ELRS 2.4G Diversity Receiver is built-in a TCXO (temperature compensated crystal oscillator), which is shared by two RF chips for a super accurate clock source. The true diversity receiver including two RF chips and PA+LNA will generate a large amount of heat when working. With the high-quality TCXO, it can withstand extreme temperatures with no fear of heat and cold, continuously outputting accurate frequency for long range flight. 【Dual RF Receiver Chains】SuperD ELRS 2.4G Diversity Receiver with two complete RF receiver chains (referring to PA+LNA+SX1280), ensuring longer and more stable flying for FPV drones and RC airplanes. Based on the latest official ExprssLRS. It comes with ExpressLRS V3.0.0 firmware. 【Two Dipole T Antennas】SuperD ELRS 2.4G Diversity Receiver comes with Two Dipole T antennas, it will create an omnidirectional signal for good signal transmission. Placing the antenna separately and vertically as far part as possible to get a better signal is recommended. 【Compatible Products】Not only it is used for FPV drones but also for FPV fixed-wing, or other FPV aircraft. It has superb performance in long range flying. It greatly fulfills the requirements of reliability for long range flying, aerial photography, or FPV freestyle tricks 【Ultralight Weight】 Ultralight weight only 1.1g without the antenna. The receiver board features a reasonable layout and is impeccably clean. Very easy to solder.
