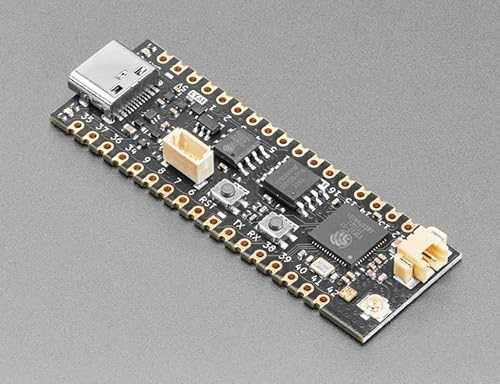

ProS3 ESP32-S3 with u.FL by Unexpected Maker - SKU 5749

Produktbeschreibung

Product ID: 5749 ual 32bit Xtensa LX7 cores @ up to 240Mhz RISC-V Ultra Low Power Co-processor 2.4GHz Wifi - 802.11b/g/n Bluetooth 5, BLE + Mesh 16MB QSPI Flash 8MB of extra QSPI PSRAM 2x 700mA 3.3V LDO Regulators LDO2 is user controlled & auto-shuts down in deep-sleep Low power RGB LED Ultra low deep sleep current USB-C Connector with back-feed protection USB ESD protection Native USB + USB Serial JTAG LiPo Battery Charging + PicoBlade connector VBAT and 5V Sense Pins 3D High Gain Antenna STEMMA connector powered by LDO1 27x GPIO including castellated headers JTAG pins on the header
